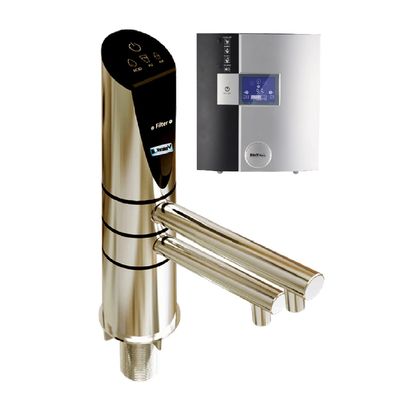

BionSupreme Black

---

VOLUME

U0 (MUTE)

U1 (1 LEVEL)

U2 (2 LEVEL)

U3 (3 LEVEL)

Touch the volume button to adjust the "PING" sound.

DECALCIFICATION ALARM FUNCTION

If you wait for more than 3 seconds after touching the volume button,

Cleaning alarm

0 X

1 every 450L

2 every 900L

3 every 1800L

FACTORY MODE

If you wait for more than 3 seconds after touching both the alkaline and purify buttons simultaneously, you can enter the inspection mode at the same time as the "PING" sound.

If you wait for more than 3 seconds after touching both purify button and the Volume button simultaneously, the "PING" sound is initialized at the same time.

INSPECTION MODE

After touching both the alkaline and the integer buttons simultaneously, wait for more than 3 seconds to enter the inspection mode at the same time as the "PING" sound.

1d x.x Water flow →  Press he exit key to check the current flow.

2d xxx PGM Reference Indicator (OOOO-OOO)

3d L.x Continuous water flow rate limit (0 : no water flow rate limit, 1 : 5l, 2 : 10l)  →  except ceramic water valve

4d xxx pH Otput Current (A) Change (A) Change STEP (Reference : "2" STEP)

5d P_x Display of the screen on stage (0: 7.5, 1 : 8.5, 2: 9.0, 3 : 9.5, 4 : Last stage of use)

6d r_x Proximity sensor use status (0 : OFF, 1 : ON)

7d 8.x Decalcification alarm function (Cleaning cycle)

8d C_x Select DARC Operation (1_External: 5l, 2 _selection: 1l)

A -02 Low flow rate (less than 0.5l/min) displayed

A-03 Display when over-current check occurs

A-08 Show in case of genuine filter recognition error

A-09 DARC valve sensor check mark

A-10 OFF according to filter usage (base_150l)

A-OF Show high oil content 3.3 l/min or higher)

LANGUGE SELECTING (KOREAN, ENGLISH)

If you wait for more than 3 seconds after touching the integer button, select the language at the same times as the "PING" sound. Enter mode.

[ German ]

[ English ]

[ Switzerland German ]

[ French ]

VOICE MESSAGE

1. Alkaline ionized water on process
2. Acidic ionized water on process
3. Crystal clear water in production
4. Change filter process
5. Self cleaning
6. Drain out, wait for a moment please
7. Filter rejected, mount correct one

Models with the Euro-change valve do not need to be cleaned for the electrolyser and forced for drain.

Filter Change

If water taste changes or the amount of water drops significantly, check if the filter has reached its life. At the time of the filter change. the LCD display filter usage displays "999" and a filter change indicator appears with a voice message saying "Please replace filter."

Filter life according to the water quality characteristics of the place it may be slightly different, so the water smells or decreases the flow ratelf it is detected, it is better to exchange it.

The timing of the exchange may be reduced if:

• In the event of rust from pipe aging.
• When removing a lot of foreign substances from the water (cold water, invisible substances) in a short time.
• Filter usage is automatically reset (initialized) when new filters are applied.

How to Filter Changing

1. Remove the filter cover by pressing the locking part of the lower section of the filter, and then lift the leg up on the top of the filter.
2. Remove the suture sticker on the bottom of the new filter, attach it to the groove, turn it clockwise to assemble it, connect the original sensor connection and gently push the middle of the filter to settle it.
3. Run water through the main body to clean the filter (about 2 to 3 minutes), check is there is any leakage, and close the filter cover.

Press the Alkaline & Volume Button Together.

Press the Alkaline & Volume Button Together.

TAP WATER PIPE CONNECTING

PRODUCT CONNECTING

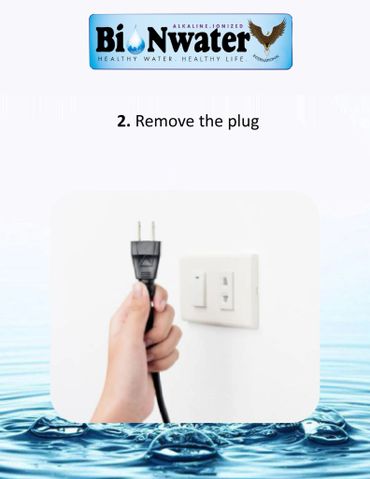

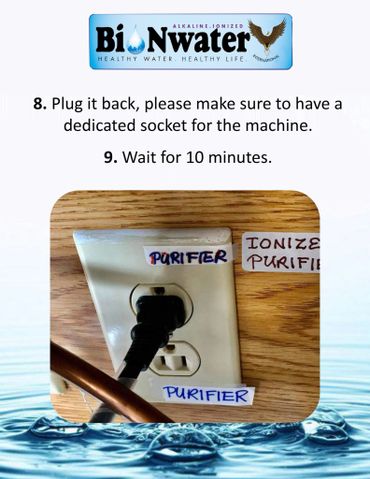

POWER CONNECTING

1. Product to Power Code.
2. Power supply (AC code connection)

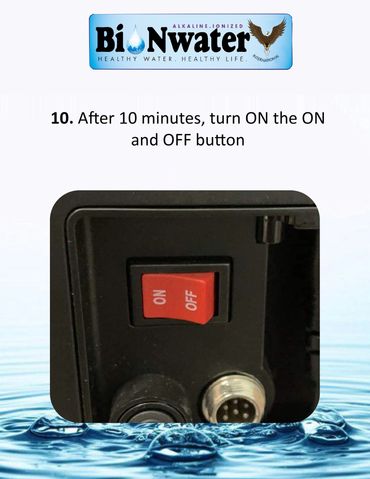

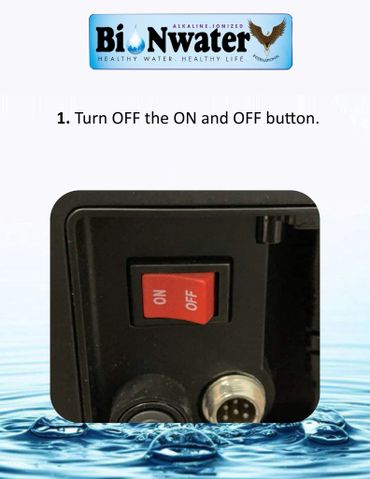

3. Power switch ON.

OUTLET PIPE CONNECTING

1. Install the drain hose lower than the main body.
2. If the drain hose length is longer or higher than the main body, it may affect ion production and cause a change in the water taste.
3. The proper length of the drain hose is 50 to 70cm.
4. Blocking, bending, or twisting the drain hose does not drain smoothly, causing leakage or failure.
5. If the length of the drain hose (more than 70cm) is longer than the main body, it shall be installed in such a way that the water can flow smoothly.

Alkaline Water

1. Touch the alkaline button to select the desired pH level.
2. Opening the ceramic water supply valve, the flow sensor is activated, and the voice comment "Generating alkali ion water." Alkali ions are released along with.
3. Closing the ceramic water valve stops.

Acidic Water

1. Touch the acid water button to select the desired pH level.
2. Opening the ceramic water supply valve, the flow sensor is activated and the voice comment is "Creating acid hot water."
3. Closing the ceramic water valve stops.

* The method above is identical to the method used for integer.

(proximity sensor)

Proximity functionality is the ability to detect movements of the nearby human body and put it on hold.

The maintenance time after the cut is kept for about 1 min and if no further action is detected, the LCD is turned off.

Screen displays when detected indicate an alkaline water step.

When the proximity sensor function is disabled, the LED screen in the use phase is always off when the setting is disabled after entering the inspection mode.

STEP SETTING

Check the pH color of the water before installing the product.

Acidic, alkaline water, Same STEP Change Method

1 Level (pH7.5) : 1 ~ 4 STEP

2 Level (pH 8.5) : 1 ~ 4 STEP

3 Level (pH 9.0) : 1 ~ 4 STEP

4 Level (pH 9.5) : 1 ~ 4 STEP

5 Level (pH 10.0) : 1 ~ 4 STEP

If you set the step you want to change in the standby mode and touch the alkaline button for more than 3 seconds, you enter STEP change mode with the sound of "PING SOUND"
